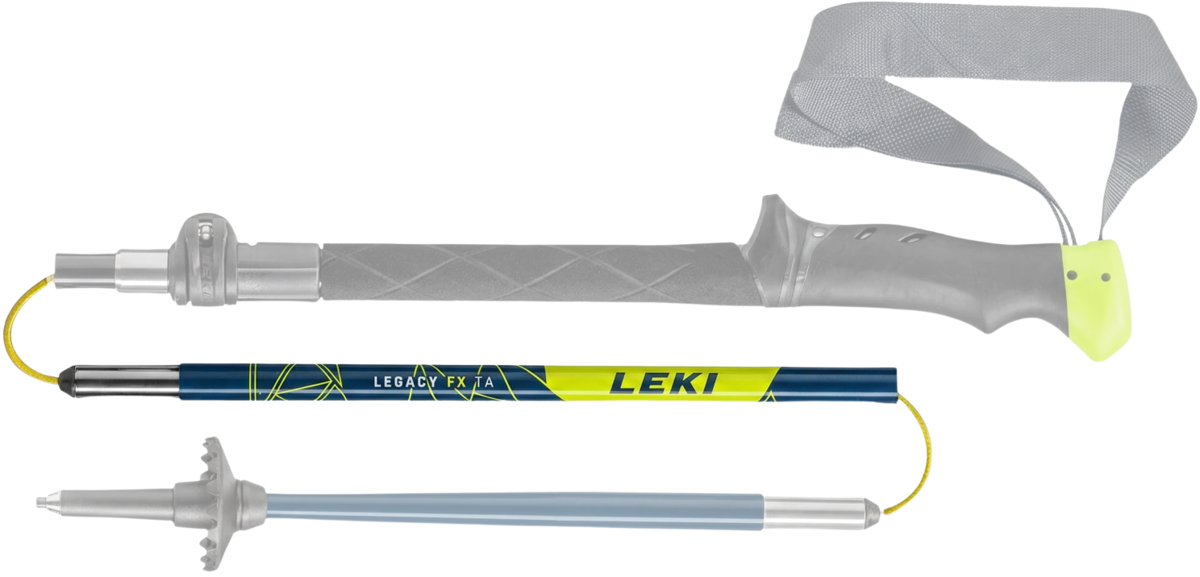

LEKI Middle Section 3 for Legacy FX TA
Product code LE797365222452 - Standard
£40.00
Description
This is the genuine LEKI replacement middle segment 3 for Legacy FX TA folding poles in the 110–130cm Vario range. It fits pole model LE65222452 (Legacy FX TA, neonyellow-darkblue-white) and is also compatible with LE65220751 (Makalu FX TA). The part covers all five size steps from 110cm through to 130cm — one part number fits the entire size range.
The section is constructed from aluminium and measures 18mm at the upper connection point and 16mm at the lower connection, giving a tapered fit within the ELD (External Locking Device) FX folding system. It is sold as a single section without basket. The lower section (LE797065222452) is a separate spare part.
If you are unsure which section your pole requires, check the underside of the segment near the locking clip for the stamped model code, or contact LEKI UK directly with your pole's EPOS code before ordering.
Why it matters on the mountain
- A bent or cracked section doesn't mean the whole pole is finished — replacing this segment restores full function at a fraction of the cost of a new pair.
- Exact-match aluminium construction keeps the pole's weight and flex characteristics correct — a non-genuine replacement changes how the pole behaves under load.
- The 18/16mm diameter taper ensures secure, rattle-free seating in the ELD clip — an imprecise fit causes play in the fold joints and puts stress on the locking mechanism.
- One part covers all five sizes from 110cm to 130cm, so there is no need to specify your pole size when ordering.
KEY FEATURES
- Genuine LEKI aluminium replacement section — direct factory fit, no modification required
- 18mm upper / 16mm lower diameter — third section from base in the FX 3-segment folding system
- ELD (External Locking Device) compatible — clips into the FX locking system without tools
- Fits all sizes in the 110–130cm Vario range — single part number for the full range
- Supplied as a single section — basket not included
- Compatible with LE65222452 (Legacy FX TA) and LE65220751 (Makalu FX TA)
HIGHLIGHTS
Which section is this? ▼
The Legacy FX TA is a three-segment folding pole. Counting from the tip upward, the sections are: lower segment (tip end), middle segment 3 (this part), and the grip assembly. Middle segment 3 is the central shaft section — the one that folds up between the lower section and the grip when the pole is packed down. It connects to the lower section via the lower ELD clip and to the grip assembly via the upper connection joint.
Aluminium construction ▼
This section uses the same aluminium alloy as the original Legacy FX TA pole. Aluminium provides a balance of strength, flex, and impact resistance suited to trekking use. The 18/16mm taper is machined to LEKI's production tolerances, ensuring the section seats correctly in the ELD locking clips with no play. Do not substitute with a section from a different pole model — diameter differences of even 0.5mm will compromise the fold joint.
One size fits all 110–130cm poles ▼
Unlike adjustable telescopic poles where each segment is a different length per size, FX folding poles in the Vario range use a single section length for the entire 110–130cm span. The length adjustment is handled at the upper Vario joint, not within the shaft sections. This means one part number covers every size in the range, from the 110cm option up to the 130cm option.
ALL PROPERTIES
Full Specifications ▼
Section position
MS3 — FX third from bottom (middle segment 3)
Section diameter
18mm upper / 16mm lower
Shaft material
Aluminium
Locking system
ELD — External Locking Device (FX folding)
Pole system
FX Folding — Variable Length (Vario)
Fits pole size range
110–130cm (all sizes — one part number)
Supplied as
Single section — basket not included
EAN
4028173858552
COMPATIBILITY
Primary compatible pole: LE65222452 — Legacy FX TA (neonyellow-darkblue-white)
Also compatible with: LE65220751 — Makalu FX TA (petrol-black-silvergray)
Fits size range: 110cm / 115cm / 120cm / 125cm / 130cm (all five Vario sizes)
Related spare: Lower segment — LE797065222452 (sold separately)
NOT COMPATIBLE WITH
- Legacy FX TA silvergray-bright red-black (LE65222451) — same pole model, different colourway, requires its own section LE797365222451
- Makalu FX Carbon (LE65220621) — carbon/aluminium construction with different section dimensions
- Makalu FX.One Carbon (LE65420701) — 4-fold FX system with different section specs
- Telescopic (Vario) poles — Speed Lock system, incompatible locking mechanism
- The lower segment of this pole — order LE797065222452 for the lower section
Trade Mark of Manufacturer: LEKI
Manufacturer & EU Responsible Person: Leki Lenhart GmbH, Karl-Arnold-Stabe 30, 73230 Kirchheim/Teck, Germany
