LEKI Sherpa FX Carbon Strong MS2 — Trekking Poles

Product code 820226161120235 - Standard

£20.00
Size Guide
Item added to bag. View bag
Please select a size from above to proceed.
You can select only one domestic product per size.
Delivery Info

Description

16 mm Section
Carbon
Middle Section 2 (MS2)
ELD Folding
120–140 cm Vario
This genuine LEKI Middle Section 2 (MS2) spare fits the Sherpa FX Carbon Strong — LEKI's Performance Series trekking pole built for taller and heavier trekkers, load carriers and expedition use where strength comes first. The 16 mm Carbon (PRC 1000) section is supplied at 235 mm to match the pole sizes listed below — fit the correct length and the pole performs exactly as it left the factory. The Sherpa FX Carbon Strong adjusts its overall length through the Speed Lock system on the upper shaft, but each folding section is a fixed factory length — so the replacement must match this section's dimensions exactly. Whether you are on the Lakeland fells, Snowdonia or a Highland multi-day, a fresh section beats replacing the whole pole.
BEFORE YOU ORDER — QUICK CHECK
✓ Your pole is the Sherpa FX Carbon Strong (LE65629801) — 120–140 cm Vario
✓ The damaged section is the Middle Section 2 (MS2) — see the section guide below
✓ This part fits: Sherpa FX Carbon Strong (120–140 cm Vario)

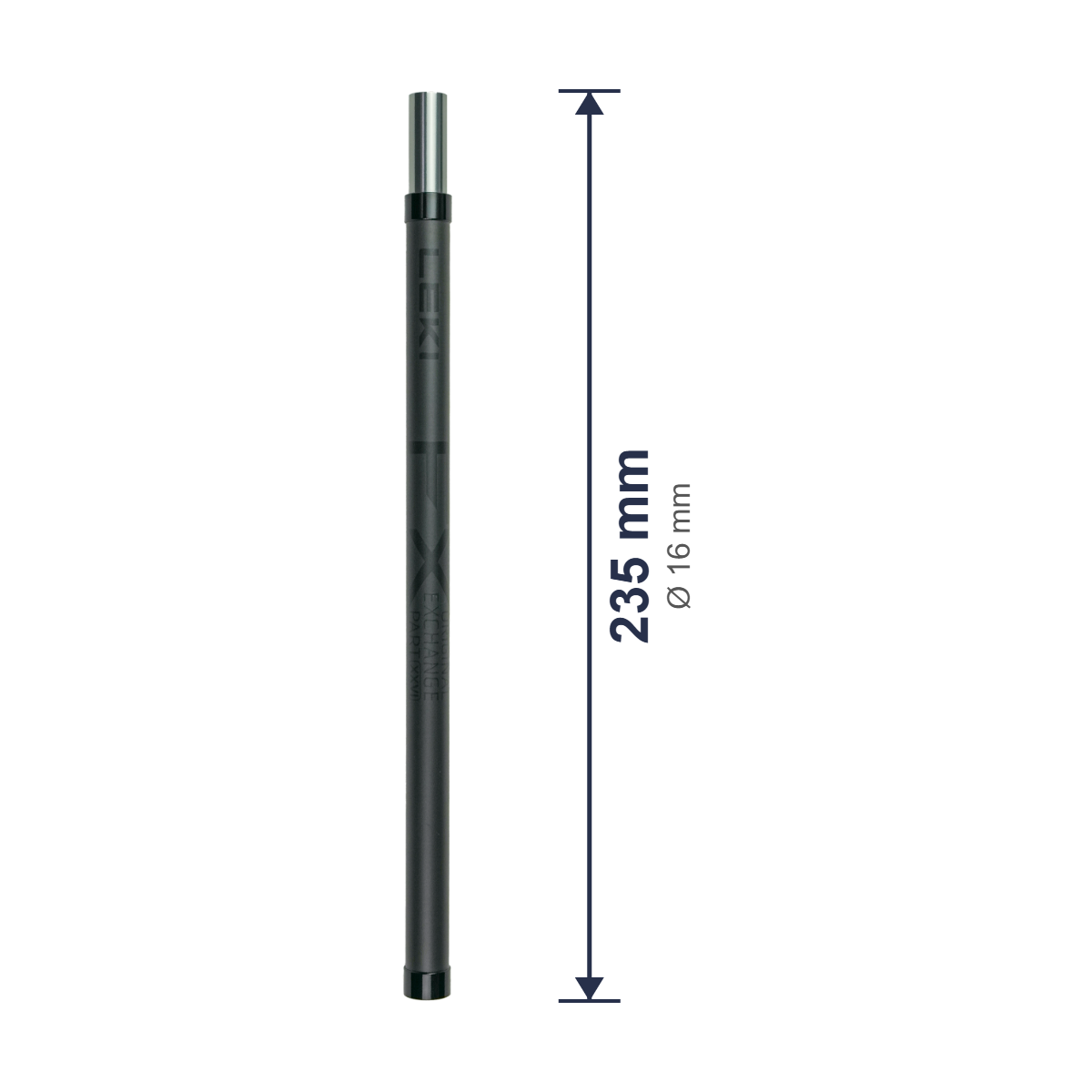

✓ Measure the damaged section: 16 mm diameter × 235 mm length — other lengths are separate parts
✓ Black endcap? Poles with a black endcap are not user-fittable — do not order a replacement section for them



▸ Full Technical Specifications
Section type Middle Section 2 (MS2)
Section diameter 16 mm
Section length 235 mm
Material Carbon (PRC 1000)
Fitted with ELD Sleeve + Stabilisation Ring
Folding system ELD folding + Speed Lock 1 plus Vario adjustment
Full pole diameter stack 20 | 18 | 16 | 16 | 16 mm
Pole construction Vario — length adjustable via Speed Lock
Tip / Basket Not included — replacement shaft section only
LEKI product code 820226161120235 (EAN 4028173397945)
▸ Compatibility & Fitting Guide
Compatible with
✓ Sherpa FX Carbon Strong (120–140 cm Vario)
Which section is the MS2?
These poles fold into five sections. From the tip upward: the Lower section (tip end), MS3, MS2, then MS1, with the Vario upper section and grip at the top. MS2 is the middle of the three middle sections, sitting between MS3 and MS1.
How the folding system works
The pole folds via LEKI's External Locking Device (ELD) — the button at the top of the folding joints — while overall length adjusts separately through the Speed Lock lever on the upper section. The folding sections themselves are a fixed length per model.
How to fit
1. Unfold the pole and locate the joints either side of the MS2 section.
2. Release the folding lock and separate the damaged section from its neighbours.
3. Thread the internal cord through the replacement section, reconnect, and lock the joints back into position.
If the internal cord is damaged, the pole needs a workshop repair — a section swap alone will not fix it.
Black endcap? Do not order — black endcap poles are not user-fittable.
▸ Not Compatible With
✗ The MS1, MS3 and Lower sections of this pole — separate, non-interchangeable parts
✗ Any FX.One fixed-length pole (Push-Button folding) — different section architecture
✗ Any telescopic (Vario non-folding) pole — different section architecture, not FX-compatible
