LEKI Sherpa XL, Khumbu & Makalu Antishock Replacement Lower Section
Product code LESECL85 - Black Anodized
£26.95
Description

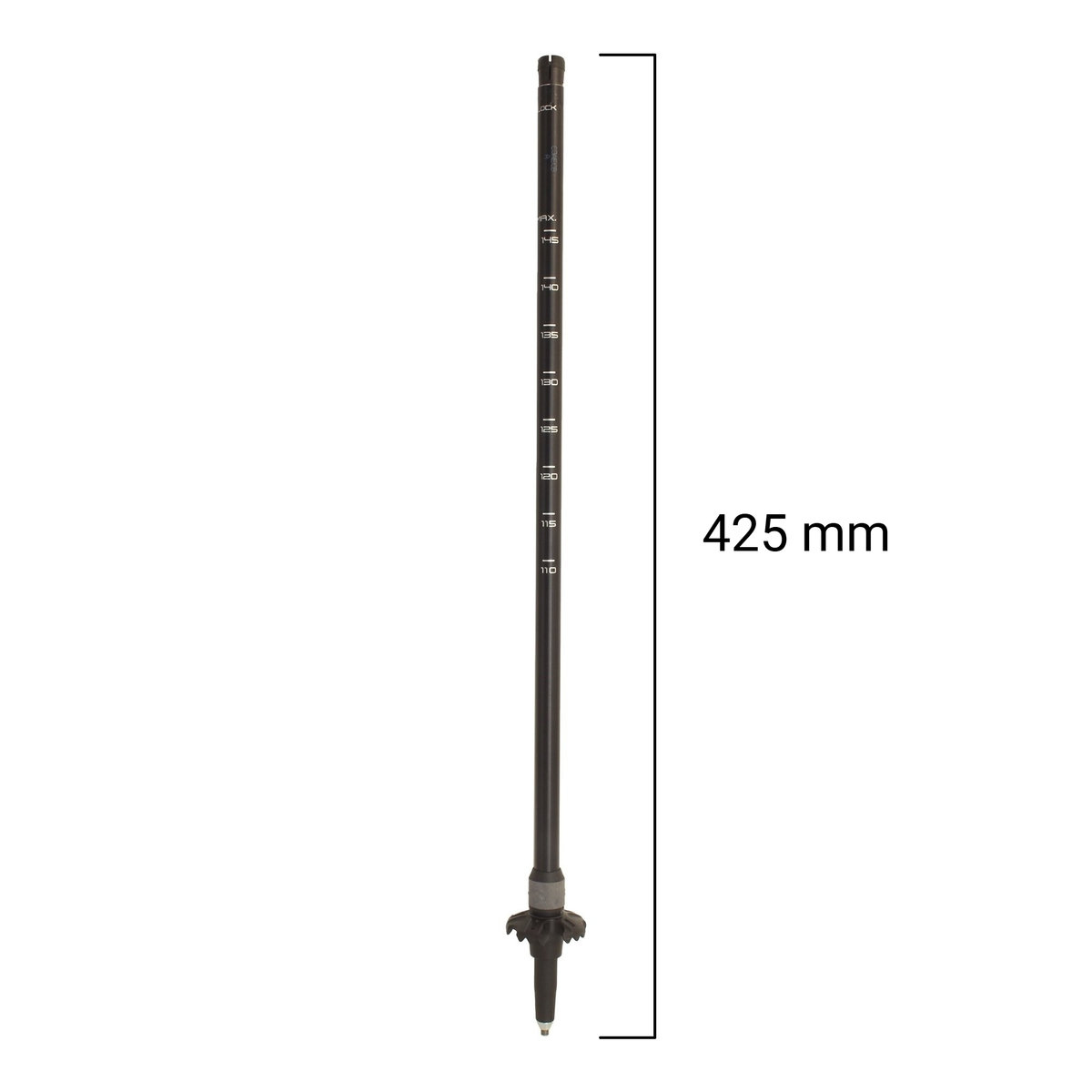

LEKI Code: LESECL85 14 mm Lower Section 423 mm Length Black Anodized SL2 + DSS 16/14 mm Section Production Era: Approximately 2006–2012
This 14 mm lower section is the correct factory replacement for the LEKI Sherpa XL, Khumbu, and Makalu Antishock trekking poles in the SL2+DSS black anodized configuration, built on the standard 18/16/14 mm three-section telescopic geometry. The DSS (Dynamic Suspension System) anti-shock spring is integrated into this lower section assembly — unlike the SAS system, which sits in the upper section, DSS is located in the lower section itself. The Speed Lock 2 (SL2) external lever clamps against the 14 mm section for height adjustment. The black anodized finish (colour code 033) and 423 mm printed length are the defining specifications for this version. From boulder-strewn descents above Snowdonia to extended ridge routes through the Lake District, the Sherpa XL, Khumbu, and Makalu Antishock provided DSS-cushioned performance across demanding terrain. When the lower section is worn, bent, or the DSS mechanism fails, only this specific SL2+DSS section restores the original function. The 423 mm printed length is specific to this DSS configuration — it is not interchangeable with the standard 490 mm SL2 version. Verify the printed marking before ordering. Sold as a single section.
► Full Technical Specifications
| LEKI Spare Part Code | LESECL85 |
| Article Code | 81 05 13 14 0423 33 |
| Section Position | Lower — tip end |
| Section Diameter | 14 mm |
| Printed Length | 423 mm — check this on your existing section before ordering |
| Section Profile | 16/14 mm |
| Material | Aluminium |
| Finish / Colour Code | Black Anodized (033) |
| Locking System | Speed Lock 2 + DSS — external lever with Dynamic Suspension System; open lever to release, close to lock; DSS anti-shock spring in section |
| Construction | Telescopic (Vario) — 3-section |
| Production Era | Approximately 2006–2012. The 14 mm diameter and 423 mm printed length are specific to this configuration — verify both on your existing section before ordering. |
| Sold As | Single section |
► Compatible Poles & Fitting Guide
This lower section is confirmed compatible with the following LEKI poles. Always verify the printed length and diameter on your existing lower section before ordering.
✓ Sherpa XL Antishock — article codes 6362029, 6492029
✓ Khumbu Antishock — article codes 6492026, 65220261
✓ Makalu Antishock — article codes 65228602, 6362406
✓ Diameter check: This is a 14 mm section. Measure the diameter of your existing lower section with calipers before ordering. A section measuring a different diameter requires a different spare part.
✓ Length verification: The 423 mm printed length is the defining specification — measure the printed marking on your existing lower section, not the physical length. A section showing any other printed length requires a different spare part.
✓ Fitting: Open the Speed Lock 2 lever to release the existing section, then slide it out from the tip end. Insert the new DSS section and close the lever firmly to secure. The DSS spring mechanism is integrated into this section.
✓ Lock engagement: If the lever does not close fully or the section moves under load, tighten the adjuster nut clockwise in quarter-turn increments. Test the DSS spring function by applying downward pressure after fitting.
✓ Not sure? Email photos of the full pole, the damaged section, and any visible article codes to [email protected] so the correct replacement can be confirmed before ordering.
► Not Compatible With
✗ SL2+DSS poles with a lower section of a different diameter — the lever collar will not seat correctly on a different diameter section
✗ SL2+DSS poles with a lower section of a different printed length — SL2+DSS sections of other printed lengths are different spare parts and are not interchangeable
✗ SL2-only poles (no DSS) — this section includes the DSS anti-shock mechanism and is specified for poles with DSS only
✗ SL1 or SLS poles — different locking systems; this section is not compatible with Speed Lock 1 or Super Lock System poles
BEFORE YOU ORDER — FOUR-POINT CHECK
✓ Printed length: Must read 423 mm on your existing lower section — check the printed marking, not a physical measurement
✓ Diameter: Confirm 14 mm lower section diameter — measure with calipers. This is a 16/14 mm profile section
✓ Locking system: Confirm Speed Lock 2 + DSS — the lever opens outward and the section includes an integrated DSS anti-shock spring. If your pole has SL1 levers or SLS twist-lock, this section is not suitable
✓ Construction: 3-section telescopic (Vario) with 16/14 mm section profile — verify the profile matches before ordering
✓ Unsure? Email photos of the full pole, the damaged section, and any visible article codes to [email protected] for confirmation before ordering
