LEKI Cross Trail Lite TA & Cross Trail TA Replacement Lower Section
Product code LESECL124 - Black Anodized
£21.75
Description
LEKI Code: LESECL12412 mm Section479 mm LengthBlack AnodizedSpeed Lock +3-Section DesignAluminium
The lower section is the tip-end section of a telescopic trekking pole — the section most exposed to ground contact, rock strike, and abrasion, and the one most commonly damaged through use. At 479 mm and 12 mm diameter in black anodized aluminium, LESECL124 is the genuine LEKI replacement lower section for the Cross Trail Lite TA and Cross Trail TA — lightweight 3-section trekking poles using the Speed Lock + external lever system. The 479 mm printed length and 12 mm diameter are the definitive identifiers for this section; manufactured to the original aluminium specification, it restores the correct diameter, length, and lever-clamp interface without requiring a full pole replacement.
► Full Technical Specifications
| Section Position | Lower — Tip End |
| Section Diameter | 12 mm |

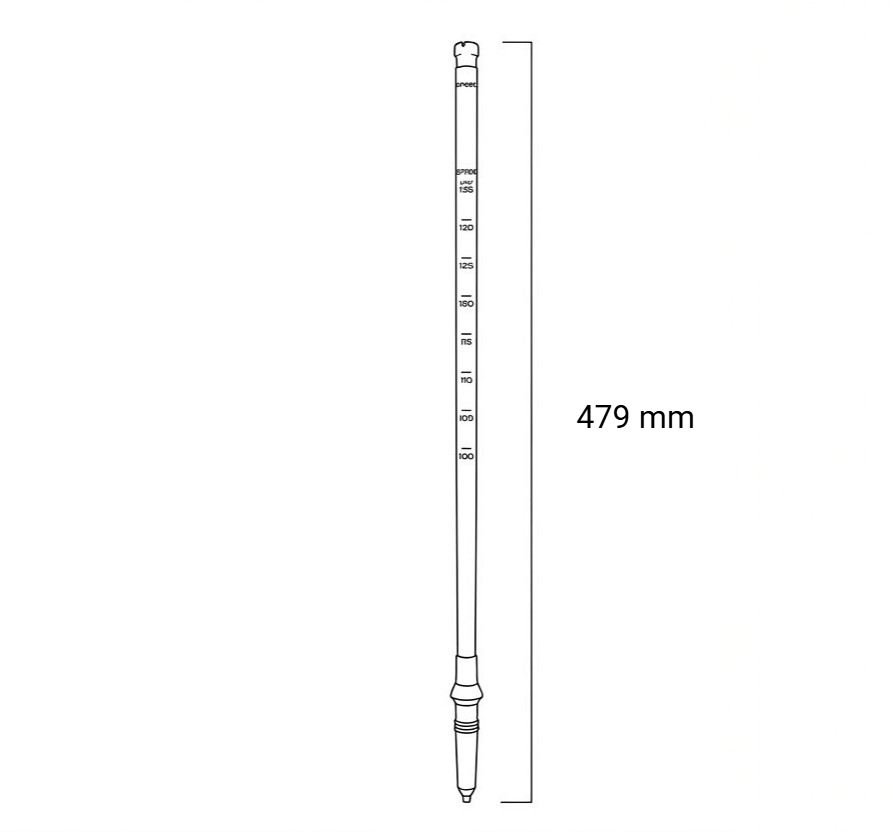

| Section Length | 479 mm |
| Material | Aluminium |
| Finish | Black Anodized (code 33) |
| Locking System | Speed Lock + — external lever clamp; the lever opens to release the section and closes to lock at any position within the adjustment range |
| Construction | Telescopic — 3-section (lower section slides inside 14 mm middle section) |
| Pole Shaft Profile | 16/14/12 mm (upper 16 mm, middle 14 mm, lower 12 mm) |
| EAN | 4028173303861 |
| Article Code | 81 05 14 12 0479 33 |
| LEKI Code | LESECL124 |
► Compatibility & Fitting Guide
LESECL124 fits LEKI 3-section Speed Lock + poles with a 16/14/12 mm shaft profile. The 479 mm printed length and 12 mm diameter are the definitive identifiers — check the printed measurement on your existing lower section before ordering. Confirmed compatible poles are listed below by model name with associated LEKI article codes.
✓ Cross Trail Lite TA (16/14/12 mm) — 65226221
✓ Cross Trail TA (16/14/12 mm) — 65126221
✓ To fit: open the Speed Lock + lever fully at the base of the middle section. Slide the existing lower section downward and withdraw. Insert LESECL124 from below until the internal stop is reached. Close the lever firmly. Adjust to required length and confirm the clamp holds under pull-test.
✓ If the lever does not clamp securely after fitting, the Speed Lock + lever tension can be adjusted via the small screw on the lever body — turn clockwise to increase clamping force.
► Not Compatible With
✗ Speed Lock 2 (SL2) poles — the SL2 lever housing has different clamping geometry and is not interchangeable with Speed Lock +; check for SL2 markings on the lever body before ordering
✗ Speed Lock 1 (SL1) and Speed Lock 1+ (SL1+) poles — earlier lever-clamp generations with different tube interfaces; not compatible with Speed Lock + sections
✗ SLS (Super Lock System) poles — internal twist mechanism; dimensionally incompatible with Speed Lock + lever hardware
✗ Speed Lock + poles requiring a different lower section length — if the printed measurement on your existing lower section is not 479 mm, a different LEKI code is required; do not fit a section of the wrong length
BEFORE YOU ORDER — QUICK CHECK
✓ Section length: the printed measurement on your existing lower section must read 479 mm — this is the primary specification and overrides all other checks
✓ Diameter: confirm the lower (tip) end of your section measures 12 mm
✓ Locking system: your poles must use Speed Lock + — there should be an external lever clamp at the base of the middle section; if the lower section rotates to lock with no external lever, the pole uses a twist-lock system and this section will not fit
✓ Sections: confirm your pole is a 3-section design with a 16/14/12 mm shaft profile
