LEKI Thermolite XL, Sherpa Lite & Peak 3 Replacement Lower Section
Product code LESECL100 - Black Anodized
£21.95
Description

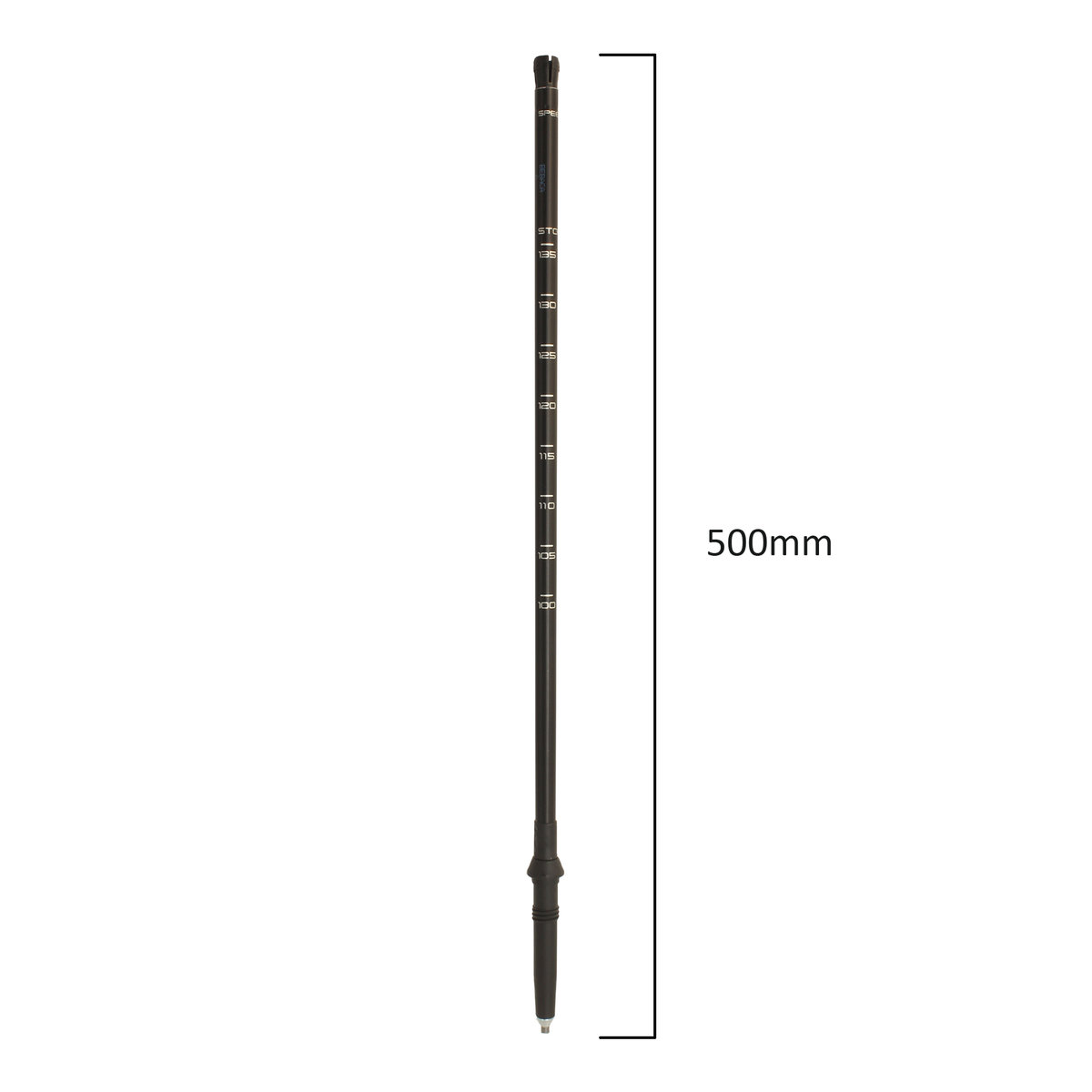

LEKI Code: LESECL100 12 mm Lower Section 455 mm Length Black Anodized Speed Lock 2 (SL2) 16/14/12 mm Section Production Era: 2014–2024
The Thermolite XL, Sherpa Lite XTG, Sherpa Lite, and Peak 3 represent a decade of LEKI’s aluminium trekking pole range built around the Speed Lock 2 lever — reliable, adaptable poles for walkers covering routes from the North York Moors to the Scottish Highlands who need a lightweight section without the weight penalty of a full aluminium shaft. LESECL100 is the genuine LEKI replacement lower section for this range: 12 mm in diameter, 455 mm printed length, finished in black anodized aluminium, and designed for the Speed Lock 2 external lever clamp at the lower joint. It covers the Thermolite XL, Thermolite XL V, Sherpa Lite XTG, Sherpa Lite, and Peak 3 across approximately 2014 to 2024. The lower section on an SL2 pole is clamped by the lever housing rather than a twist collar, and wear on the lever bore or damage to the tube affects clamping force directly. LESECL100 restores the original 12 mm diameter and 455 mm printed length, allowing the Speed Lock 2 lever to clamp at full tension across the full adjustment range. The 455 mm printed length marked on your existing lower section is the primary check before ordering — confirm this number and the 12 mm tip diameter against the section you are replacing, as other LEKI SL2 sections in this diameter are specified to different lengths.
► Full Technical Specifications
| LEKI Spare Part Code | LESECL100 |
| Article Code | 81 05 11 12 0455 33 |
| Section Position | Lower — Tip End (position 05) |
| Section Diameter | 12 mm |
| Printed Length | 455 mm (check this on your existing section before ordering) |
| Section Profile | 16/14/12 mm — upper 16 mm, middle 14 mm, lower 12 mm |
| Material | Aluminium |
| Finish / Colour Code | Black Anodized (colour code 33) |
| Locking System | Speed Lock 2 (SL2) — external lever clamp, code 11 in article number |
| Construction | Telescopic 3-section — lower section slides inside 14 mm middle section |
| Production Era | Approximately 2014–2024 — compatible with LEKI SL2 16/14/12 mm trekking poles across multiple seasons; always verify against the printed length and diameter on your existing section |
| Sold As | Single section |
► Compatible Poles & Fitting Guide
LESECL100 is confirmed compatible with the following LEKI poles where identification has been established from official LEKI product records. Always verify against the 455 mm printed length and 12 mm diameter on your existing lower section — these measurements override model name matching.
✓ Peak 3 — article codes 6342828, 6432830
✓ Thermolite XL — article code 6402135
✓ Thermolite XL V — article code 6403204
✓ Sherpa Lite XTG — article code 6492135
✓ Sherpa Lite — article code 65221351
✓ Additional confirmed compatible article code (model name not established from available sources): 6342831
✓ Additional confirmed compatible article code (model name not established from available sources): 6372818
✓ To fit: open the Speed Lock 2 lever fully at the base of the middle section. The lower section slides free downward. Insert LESECL100 from below, pushing until the internal stop is reached. Close the lever firmly. Set to your required length and confirm the clamp holds under a firm pull-test before use.
✓ Lever tension: if the Speed Lock 2 lever does not clamp the section securely after fitting, locate the small adjustment screw on the lever body and turn clockwise in quarter-turn increments to increase clamping force. Re-test after each increment.
✓ SL2 identification: the Speed Lock 2 lever is an external clamp at the joint marked “SL2” or “Speed Lock 2”. It opens outward on a hinge. If your pole has an internal twist collar at this joint, it uses SLS, not SL2, and this section will not fit.
► Not Compatible With
✗ Speed Lock 1 (SL1) poles — the SL1 lever housing uses different clamping geometry; SL1 and SL2 lever sections are not interchangeable
✗ Speed Lock + (SL+) poles — different lever generation with a different tube interface; not interchangeable with Speed Lock 2 hardware
✗ SLS (Super Lock System) poles — internal twist-lock mechanism with incompatible section geometry; do not fit this section to any SLS pole
✗ Poles whose existing lower section is not marked 455 mm — the printed length is the definitive check; any other measurement indicates a different section part is required
BEFORE YOU ORDER — FOUR-POINT CHECK
✓ Printed length: the measurement printed on your existing lower section must read 455 mm — this is the primary identifier and takes precedence over model name, colour, or purchase year
✓ Diameter: the tip end of the section must measure 12 mm — confirm with a calliper or from original product documentation
✓ Locking system: your pole must use Speed Lock 2 (SL2) — look for an external lever clamp at the base of the middle section marked “SL2” or “Speed Lock 2”; if your pole uses a twist collar at this joint it uses SLS and this section is not compatible
✓ Construction: confirm your pole is 3-section telescopic with a 16/14/12 mm section profile — the middle section should be 14 mm in diameter where it meets the lower section joint
