LEKI Sherpa XL, Sherpa XTG & Sherpa Replacement Lower Section
Product code LESECL101 - Black Anodized
£21.95
Description

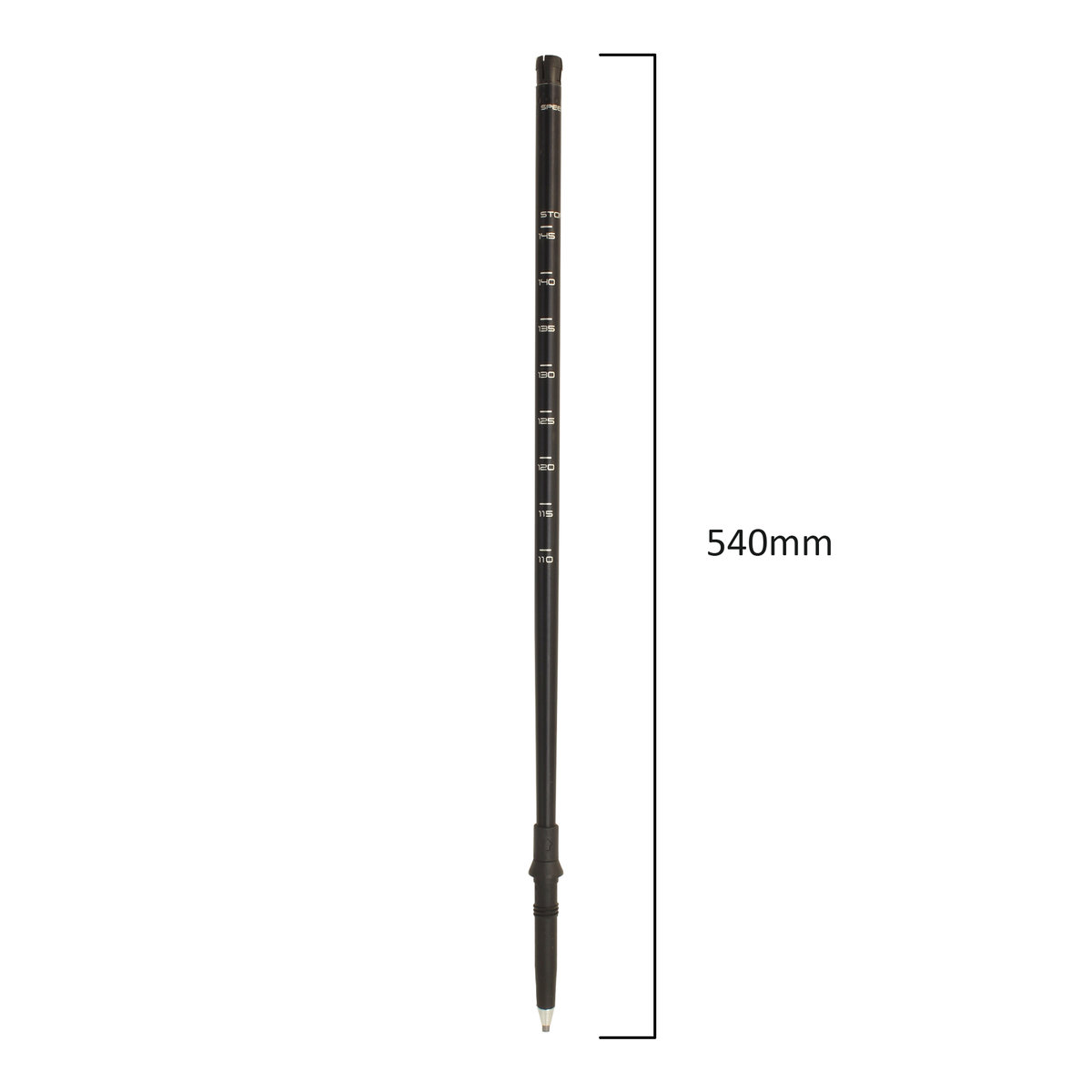

LEKI Code: LESECL101 14 mm Lower Section 490 mm Length Black Anodized Speed Lock 2 (SL2) 18/16/14 mm Section Production Era: 2016–2023
The Sherpa XL, Sherpa XTG, and Sherpa were LEKI’s aluminium SL2 trekking poles built for walkers who want reliable adjustment and a proven lever-lock mechanism across everything from an afternoon on the Malvern Hills to a multi-day route through the Cairngorms. LESECL101 is the genuine LEKI replacement lower section for this range: 14 mm in diameter, 490 mm printed length, finished in black anodized aluminium, and designed for the Speed Lock 2 external lever clamp at the lower joint. It covers the Sherpa XL, Sherpa XL V, Sherpa XTG, and Sherpa across approximately 2016 to 2023. On an SL2 pole the lower section is held by lever clamping rather than a twist collar, and tube diameter is critical to maintaining full clamping force throughout the adjustment range. LESECL101 restores the original 14 mm diameter and 490 mm printed length, ensuring the Speed Lock 2 lever seats and clamps correctly. The 490 mm printed length on your existing lower section is the check that matters — confirm this number before ordering, as other LEKI SL2 sections with a 14 mm tip are specified to different lengths.
► Full Technical Specifications
| LEKI Spare Part Code | LESECL101 |
| Article Code | 81 05 11 14 0490 33 |
| Section Position | Lower — Tip End (position 05) |
| Section Diameter | 14 mm |
| Printed Length | 490 mm (check this on your existing section before ordering) |
| Section Profile | 18/16/14 mm — upper 18 mm, middle 16 mm, lower 14 mm |
| Material | Aluminium |
| Finish / Colour Code | Black Anodized (colour code 33) |
| Locking System | Speed Lock 2 (SL2) — external lever clamp, code 11 in article number |
| Construction | Telescopic 3-section — lower section slides inside 16 mm middle section |
| Production Era | Approximately 2016–2023 — compatible with LEKI SL2 18/16/14 mm trekking poles; always verify against the printed length and diameter on your existing section |
| Sold As | Single section |
► Compatible Poles & Fitting Guide
LESECL101 is confirmed compatible with the following LEKI poles where identification has been established from official LEKI product records. Always verify against the 490 mm printed length and 14 mm diameter on your existing lower section — these measurements override model name matching.
✓ Sherpa XL — article code 6362028
✓ Sherpa XL V — article code 6403228
✓ Sherpa XTG — article code 6492028
✓ Sherpa — article code 65220282
✓ Additional confirmed compatible article code (model name not established from available sources): 65028291
✓ Additional confirmed compatible article code (model name not established from available sources): 6432829
✓ Additional confirmed compatible article code (model name not established from available sources): 65120401
✓ To fit: open the Speed Lock 2 lever fully at the base of the middle section. The lower section slides free. Insert LESECL101 from below until the internal stop is reached. Close the lever firmly. Set to your required length and pull-test before use.
✓ Lever tension: if the lever does not clamp securely after fitting, locate the adjustment screw on the lever body and turn clockwise in quarter-turn increments to increase clamping force.
✓ SL2 identification: the Speed Lock 2 lever is an external clamp marked “SL2” or “Speed Lock 2” that opens outward on a hinge. A twist collar at this joint means SLS — not compatible.
► Not Compatible With
✗ Speed Lock 1 (SL1) poles — different lever geometry; SL1 and SL2 sections are not interchangeable
✗ Speed Lock + (SL+) poles — different lever generation with incompatible tube interface
✗ SLS (Super Lock System) poles — internal twist-lock with incompatible section geometry
✗ Poles whose existing lower section is not marked 490 mm — any other printed length means a different section is required
BEFORE YOU ORDER — FOUR-POINT CHECK
✓ Printed length: existing lower section must be marked 490 mm — primary identifier, takes precedence over model name or colour
✓ Diameter: tip end must measure 14 mm — confirm with a calliper or product documentation
✓ Locking system: pole must use Speed Lock 2 (SL2) — external lever at the lower joint marked “SL2”; a twist collar means SLS and this section will not fit
✓ Construction: 3-section telescopic with 18/16/14 mm profile — middle section must be 16 mm where it meets the lower joint
